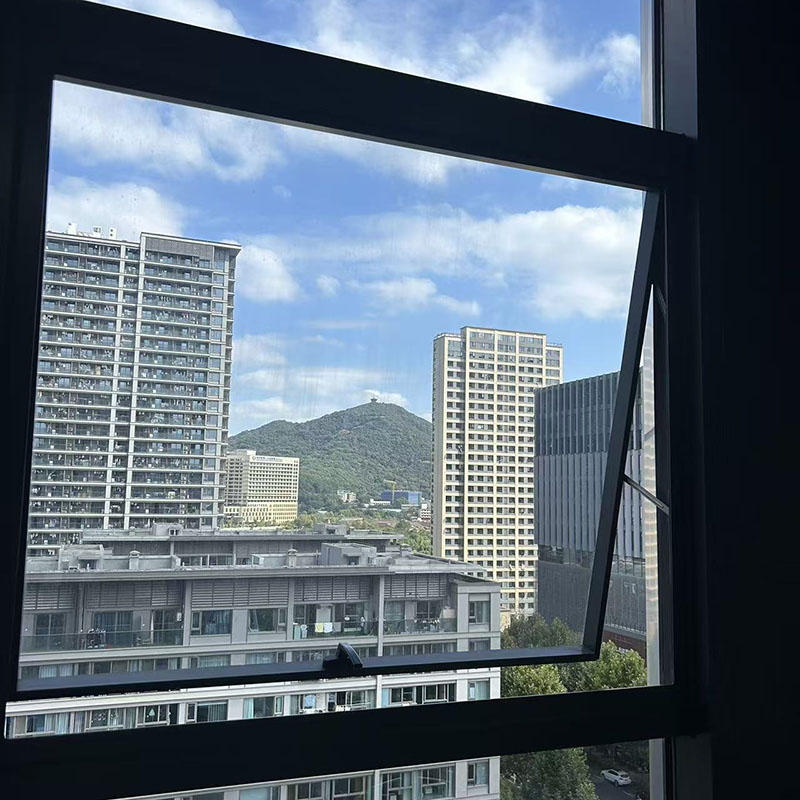

Top-Hinged Outward Opening Awning Windows

Top-Hinged Rainproof Ventilation Design
Opens outwards from the top hinge. The sash works like a small awning, allowing ventilation while stopping light rain from splashing inside.
Optional Thermal Break Aluminum Frame
PA66 nylon thermal break strip optional, reduces heat conduction and prevents condensation; standard non-thermal-break all-aluminum profile available for budget projects.
High Performance Insulated Glass
Double tempered insulated glass, optional Low-E coating + argon filling. Blocks over 90% UV rays, protects furniture fading, improves thermal and acoustic insulation.
Compression Sealing for Superior Weather Resistance
Perimeter EPDM rubber seal, tight compression closure. Better air and water tightness than sliding windows, strong wind resistance.
Adjustable Opening & Reliable Hardware
Crank operator or friction stay hinge options, flexible opening angle control. Smooth operation, lockable for enhanced security.
Space-Saving & Wide Application
No inward protrusion, safe for bathrooms and kitchens. Can be installed high on walls or used as transom above picture windows and doors.
Full Customization
Custom width & height, powder coating / PVDF finish, RAL colors, frosted / tinted / laminated glass options.

Product Name: Aluminum Awning Window / Top-Hinged Top Hung Window

Frame Material: 6063-T5 Aluminum Alloy; Optional PA66 thermal break strip

Profile Thickness: 1.4mm /1.6mm /1.8mm customizable

Glass Type: Double tempered insulated glass; Optional Low-E / Laminated / Frosted glass, argon gas filled

Common Glass Combination: 5+12A+5mm / 6+12A+6mm

U-value: 1.9 ~ 2.9 W/(m²·K) (depends on glass & thermal break option)

Noise Reduction: 28–38dB

Operation Type: Crank operator / Friction stay push-out

Surface Finish: Powder coating, PVDF coating, anodized, wood grain transfer

Color: Black, white, grey, bronze, custom RAL color

Application: Bathroom, kitchen, high wall vent, transom, villa, apartment, hotel, commercial building
