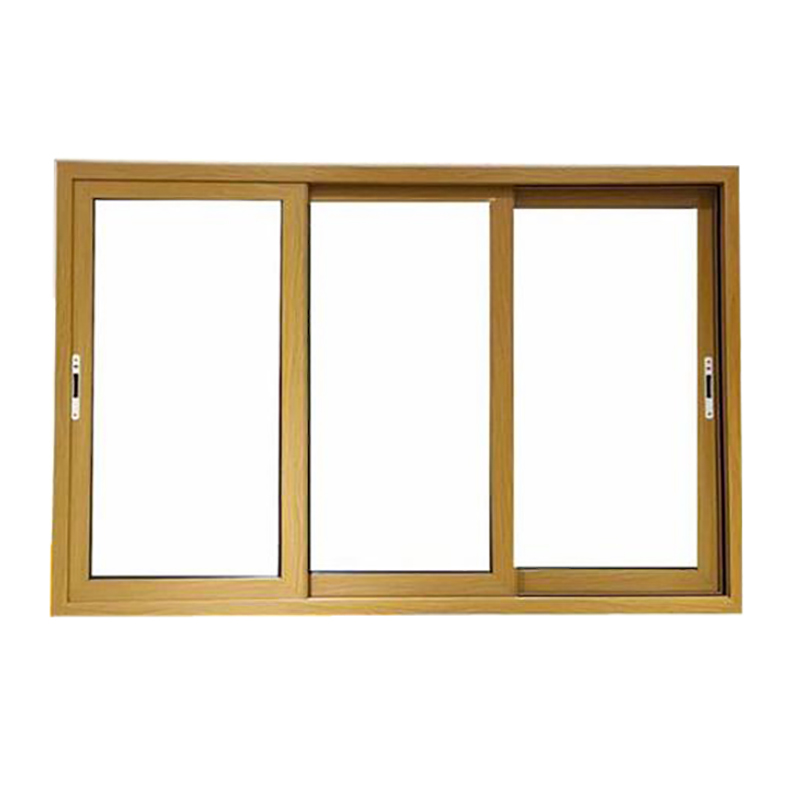

Custom Aluminum Horizontal Sliding Glass Windows

Space-Saving Horizontal Sliding Design
Sashes slide left and right within the frame. No outward or inward swing, perfect for high-rise, narrow balcony and limited clearance scenarios.
Two Frame Options Available
Optional PA66 thermal break strip for anti-condensation and better energy efficiency; budget non-thermal-break all-aluminum version for cost-sensitive projects.
High-Performance Insulated Glass
Double tempered insulated glass, optional Low-E / laminated / frosted glass with argon gas filling. UV protection, heat control and noise reduction.
Smooth & Durable Rolling System
Stainless steel rollers + reinforced aluminum track, quiet operation, wear-resistant, long service life.
Dust & Weather Sealing Structure
EPDM wool pile and rubber sealing system, effectively block wind, dust and rainwater. Multi-lock system for enhanced safety.
Slim Frame & Custom Layout
Slim sightline profile maximizes glass area for broad views. 2/3/4 panels, custom width and height available.
Low Maintenance & Wide Application
Corrosion-resistant aluminum frame, easy to clean. Suitable for residential villas, apartments, balcony and commercial spaces.

Product Name： Aluminum Sliding Window / Horizontal Glide Sliding Window

Frame Material： 6063-T5 Aluminum Alloy; Optional PA66 thermal break strip

Profile Thickness： 1.4mm /1.6mm /1.8mm customizable

Glass Type： Double tempered insulated glass; Optional Low-E / Laminated / Frosted glass, argon gas filled

Common Glass Config： 5+12A+5mm / 6+12A+6mm

U-value ：2.0 ~ 3.0 W/(m²·K) (varies by thermal break & glass)

Noise Reduction： 28–36dB

Panel Combination： 2 panels / 3 panels / 4 panels, custom layout

Hardware： Stainless steel roller, multi-point lock

Surface Finish ：Powder coating, PVDF coating, anodized, wood grain transfer

Color： Black, white, grey, bronze, custom RAL color

Application： Balcony, living room, bedroom, apartment, villa, hotel, shop front
